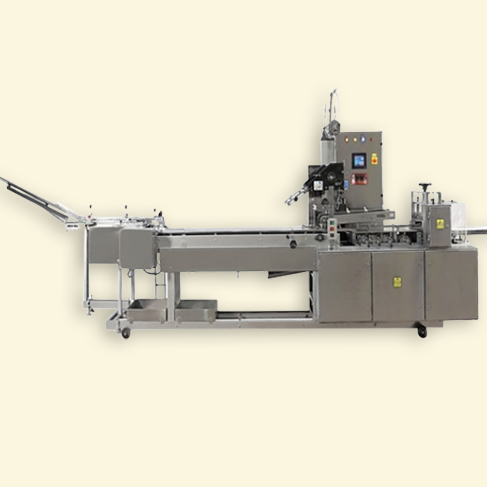

FAMILY PACK SERVO Manufacturers, Suppliers, and Exporters in India, South Africa, Paarl, Johannesburg, Benin, Zambia, Central Africa, Uganda, Mozambique, Kenya, Nairobi, Nigeria, and Lagos. Family Pack Servo Auto wrapping is one of the best solutions in biscuit and bakery industries for packaging of different types of packets with single to four row provisions in one packet. Semi automatic with single chute hopper feeding belt conveyor and the auto stack selection by Servo operated pusher and loader make it very effective and reduce the man power to a certain limit. The PLC controlled with touch screen panel make it user friendly and is easy to set the parameters. The speed can be varied up to 100 packets per minute according to number of rows.
| Main Drive Motor | 3 phase/1 phase 6 Lead | 2 HP, 1440 rpm, 440 V, 50 Hz | |
| Paper Drive Motor | 3 phase/1 phase 6 Lead | 1 HP, 1440 rpm, 440 V, 50 Hz | |
| Servo Motor | Single phase - 3 no | 400 W, 3000 rpm, 106 V, 50 Hz | |
| Servo Drive | Single phase - 3 no | 200 V, 400 W | |
| Main Drive& Paper Drive | 230 V, 1 HP | Input | output |
| Single Phase | 3 Phase | ||
| Jaw Heater | 50 V, 350 W - 4 No | ||
| Dish Heater | 50 V, 400 W - 4 No | ||
| Transformer | Primary - 2 Phase, 440 V, Secondary - 50 V, 30 A+ 30 A | ||
| Product Size Range | 50 mm (W) x 30 mm (Ht) x 5 mm (thk) To 60 mm (W) x 60 mm (Ht) x 8 mm (thk) 50 mm |
| Stack Size Range | to 250 mm |
| Wrapper Size Range | 120 to 350 mm Cutoff Length & 150 to 460 mm wrapper width |
| Type of Product | Should be stiff or hard and round or rectangle or square in shape. |
| Speed | 25 to 100 (PPM) (depending upon the size of the product& no of rows). 4 Rows Single |
| Feeding | hopper feeding with belt conveyor. |

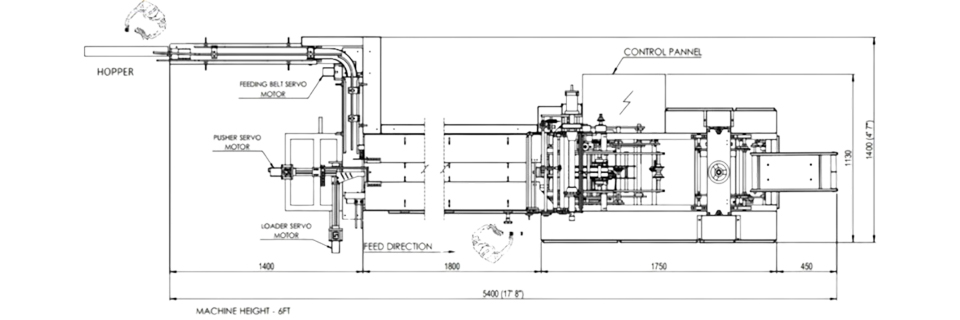

| Machine Dimension | 5400 (L) x 1400 (W) x 1675 (H) |
| Weight | 1200 kg (Approx.) |
| Wrapping Material | BOPP laminated, LD Polyester, Heat Sealable Laminates Containing Aluminum Foil. Maximum 12 inches Roll diameter. |
