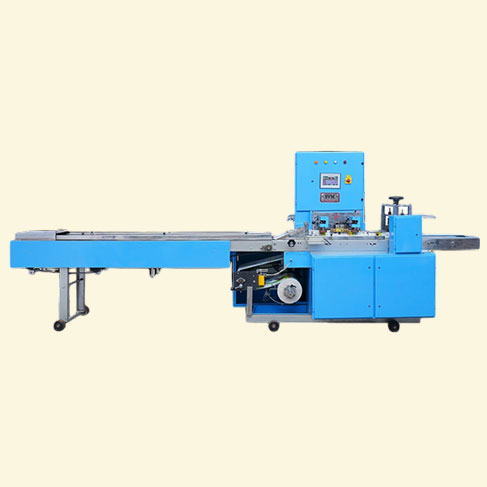

Inverted Flow Wrap Manufacturers, Suppliers, and Exporters in India, South Africa, Paarl, Johannesburg, Benin, Zambia, Central Africa, Uganda, Mozambique, Kenya, Nairobi, Nigeria, and Lagos. Inverted Flow Wrap is specially designed to pack unshaped, thin or soft, solid products like Hand gloves, cutlery, and incense sticks. The PLC controlled with touch screen panel make it user friendly and is easy to set the parameters. The speed can be varied up to 70 packets per minute according to cutoff lengths and products. Products can pack- Hand Gloves, Tissue Paper, Spoons, Incense sticks etc.
Total Load 4.Skw, 3 phase supply
| Main Drive Motor | 3 phase/1 phase 6 Lead | 1.5 KV)/1440 rpm, 440 V, 50 Hz | |
|---|---|---|---|
| Paper Drive Motor | 3 phase/1 phase 6 Lead | 0.75 KV)/1440 rpm, 440 V, 50 Hz | |
| Main Drive & Paper Drive | 230 1 HP each | Input | Output |
| Single Phase | 3 Phase | ||
| Jaw Heater | 50 V, 160 W-4 No | ||
| Center Seal Heater | 50 V, 160 W-2 No | ||
| Transformer | Primary - 2 Phase, 440 V, Secondary - 50 V, 30 A+ 30 A | ||
| Product Size Range | 50 mm (\fl/ x 15 mm Ht To 120 mm (\fl/ x 60 mm (Ht) |
|---|---|
| Wapper Size Range | 110 to 290 mm Cutoff Length & 150 to 300 mm wrapper width |
| Speed | 20 to 60 (PPM) (depending upon the size of the product). |
| Feeding | Hand Feeding. |
| Wight | 800 kg (Approx.) |
| Wapping Material | BOPP laminated, LD Polyester, Heat Sealable Laminates Containing Aluminum Foil. Maximum 12 inches Roll diameter. |
