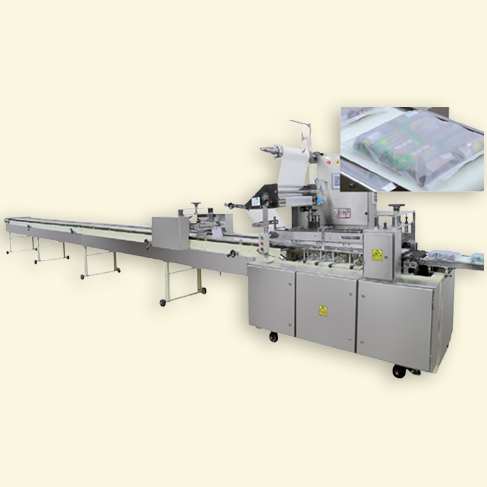

Overwrap Packing Machine Manufacturers, Suppliers, and Exporters in India, South Africa, Paarl, Johannesburg, Benin, Zambia, Central Africa, Uganda, Mozambique, Kenya, Nairobi, Nigeria, and Lagos. This machine is the important machine in secondary packaging. This machine is used to pack a bundle of 10-12 pre packed packets ofbiscuits in a magazine of2x5 or 2x6 i.e. 2 packets in one row and Five rows in one packet or 2 packets in one row and six rows before going for cartooning. This machine is suitable to pack HM Wrappers (High molecular) and also BOPP wrappers.
| Power Supply | 3 Phase, 6 KW440 V With neutral. | |||
| Main Motor & Paper Motor | 3 phase/1 phase 6 Lead | 2 HP, 1440 rpm, 440 V, 50 Hz | ||
| Main VFD & Paper VFD | Input | output | ||
| 230 V, 2 HPSingle Phase3 Phase | ||||
| Jaw Heater | 50 V, 350 W - 4 No (Check the actual wattage) | |||
| Dish Heater | 50 V, 400 W - 4 No (Check the actual wattage) | |||
| Transformer | Primary - 2 Phase, 440 V, Secondary - 50 V, 30 A+ 30 A | |||
| Product Size Range | 150 mm (W) x 35 mm (Ht) To 300 mm (W) x 60 mm (Ht) |
| Wrapper Size Range | 120 to 350 mm Cutoff Length & 400 to 700 mm wrapper width |
| Type of Product | Should be stiff or hard and round or rectangle or square in shape or pre pack packets |
| Speed | 10 to 40 (PPM) (depending upon the size of the product & no of rows). |
| Feeding | Feeding from direct on edge machine. |
| Control | PLC controlled |

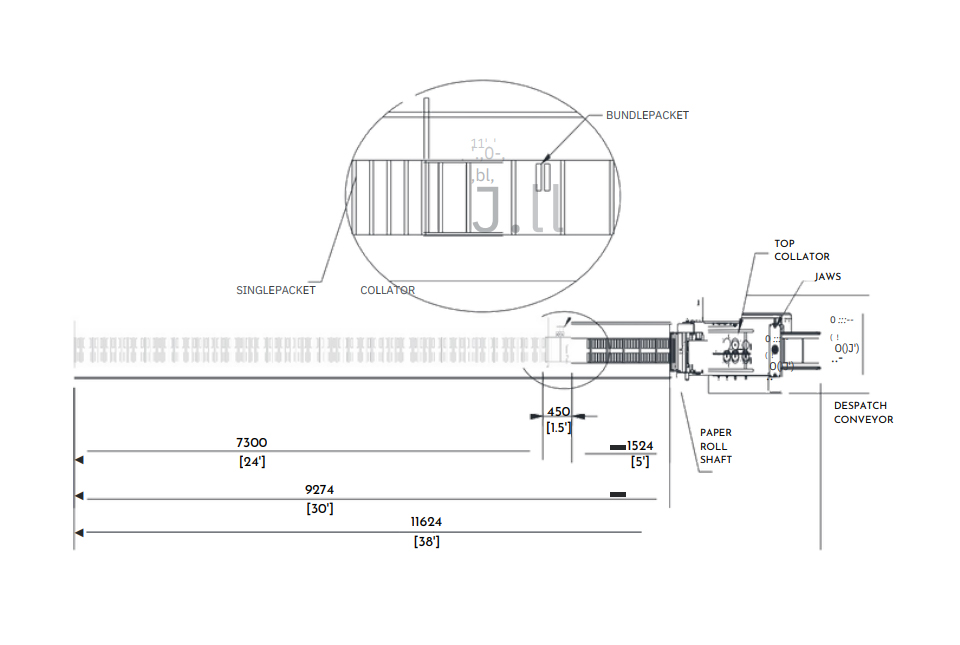

| Machine Dimension | 11624 (L) x 1160 (W) x 1975 (H) |
| Weight | 1300 kg (Approx.) |
| Wrapping Material | BOPP laminated, Heat Sealable Laminates Containing Aluminum Foil, HM wrapper. Maximum 14 inches Roll diameter. |
