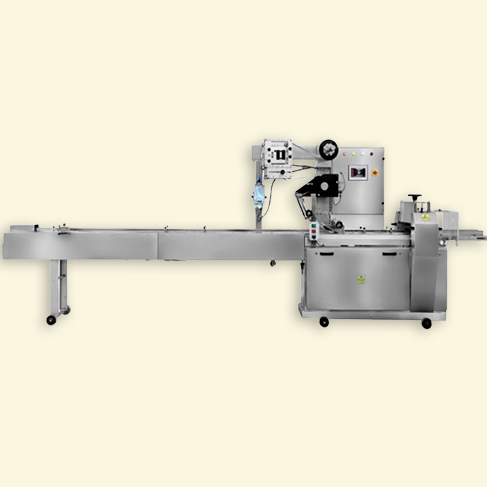

Hotel Pack Servo Hand Feeding Manufacturers, Suppliers, and Exporters in India, South Africa, Paarl, Johannesburg, Benin, Zambia, Central Africa, Uganda, Mozambique, Kenya, Nairobi, Nigeria, and Lagos. Hotel Pack Servo Hand feeding is one of the best solutions in biscuit, bakery, confectionary, automobile, electric industries for packaging of different types of products. Semi automatic with Servo operated mechanisms make it very effective and reduce the man power to a certain limit. The PLC controlled with touch screen panel make it user friendly and is easy to set the parameters. The speed can be varied up to 100 packets per minute according to product sizes.
| Main Drive Servo Motor | 1 phase1.0 KW, 2000 rpm, 440 V, 50 Hz | ||
| Paper Drive Motor | 1 phase0.75 KW, 2000 rpm, 106 V, 50 Hz 3 phase - 1 no0.5 HP, 1325 | ||
| Feeding Conveyor Induction Motor | rpm, 50 Hz | ||
| Jaw Heater | 50 V, 275 W - 4 No | ||
| Dish Heater | 50 V, 400 W - 4 No | ||
| Transformer | Primary - 2 Phase, 440 V, Secondary - 50 V, 30 A+ 30 A | ||
| Product Size Range | 50 mm (W) x 28 mm (Ht) To 100 mm (W) x 50 mm (Ht) |
| Wrapper Size Range | 110 to 290 mm Cutoff Length & 150 to 300 mm wrapper width |
| Type of Product | Should be stiff or hard and round or rectangle or square in shape. |
| Speed | 40 to 100 (PPM) (depending upon the size of the stack length). |
| Feeding | Manual |

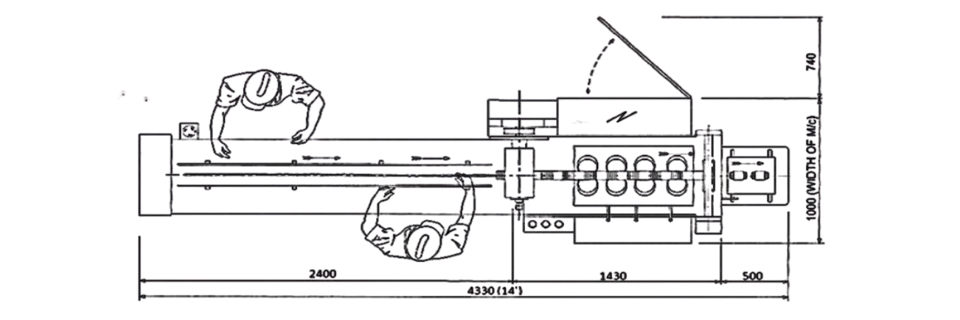

| Machine Dimension | 5400 (L) x 1400 (W) x 1675 (H) |
| Weight | 700 kg (Approx.) |
| Wrapping Material | BOPP laminated, LD Polyester, Heat Sealable Laminates Containing Aluminum Foil. Maximum 12 inches Roll diameter. |
