Four sides sealing machine

Four Side Sealing Machine Manufacturers, Suppliers, and Exporters in India, South Africa, Paarl, Johannesburg, Benin, Zambia, Central Africa, Uganda, Mozambique, Kenya, Nairobi, Nigeria, and Lagos. In Four sides sealing style packaging appearance is flat and seals the packet from all four sides. This is a handy packaging method for food products as well as non food products, but this type of packaging is mostly used in the pharmaceutical and cosmetics industry (e.g. Facial mask, herb plaster, wet tissue, sponge wipes, surgical bandages, surgical gloves etc).

Enquire Now

Call Anytime
+91 88795 88231

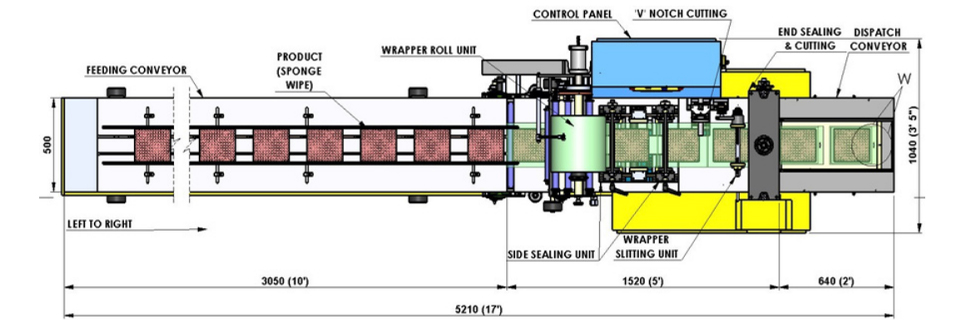

Dimensional Drawings :

Machine Specifications and technical parameters :

Power Supply	3 Phase, 5.5 KW	440 V With neutral.
Main Motor & Paper Motor	3 phase 6 Lead	2 HP, 1440 rpm, 440 V, 50 Hz
Main Drive& Paper Drive	230 V, 1 HP	Input	output
Main Drive& Paper Drive	230 V, 1 HP	Single Phase	3 Phase
Jaw Heater	50 V, 350 W - 4 No (Check the actual wattage)
Dish Heater	50 V, 275 W - 4 No (Check the actual wattage)
Transformer	Primary - 1 Phase, 230 V, Secondary - 50 V, 80 A

Technical Parameters & Specifications :

Bag Length	0 mm-230 mm
Bag width	90 mm- 180 mm
Product Height Speed	10 mm- 25 mm
Feeding	20 - 40 Packets per Minute (PPM), depending upon the size of the products
Control	Hand Feeding
Machine Dimension	PLC controlled
Feeding	5210 (L) x 1040 (W) x 1800 (Ht)
Weight	900 kg (Approx.)
Wrapping Material	BOPP laminated, LD Polyester, Heat Sealable Laminates Containing Aluminum Foil. Maximum 12'' Roll diameter.

Special Features :

PLC controlled with touch screen & password protection for the machine settings. Malfunction display through self-alarm with message.
Quick changeover for different size of products by adjusting the hand wheels (i.e. easy adjustment of width & height).
Easy to set different cutoff lengths by putting the desired value in HMI.
The Jaw Dwell & Side Tear Notch position can adjust in running condition. Also Euro hole provision is there with cutter. Double Jaw Bracket Unit.
There is a provision of Side seal edge trimming for clear up of side sealing burrs and auto scrap removal function. Using AC induction motors with Variable Frequency Drive.
Highly sensitive double I Mark scanner to monitor the pouch length and the cutting position as well as matching of top and bottom wrapper. Also I-mark cutting position can be adjusted in running condition.
All touching parts are ofSS 304
End cutter and sealer have provision for single & double jaw system for high production.
Overall durable, practical, low maintenance and affordable. Suitable for working long hours without breakdown and without need of constant supervision.
