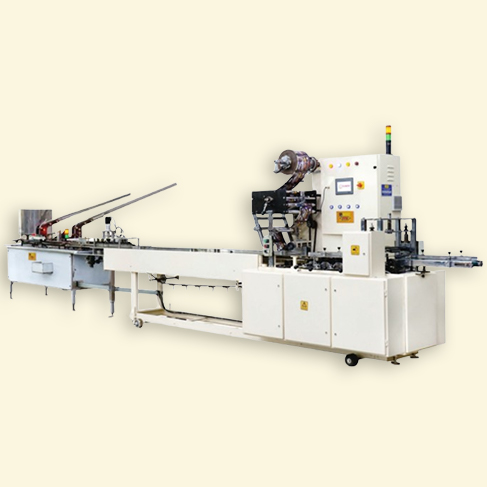

Hotel Pack Cream Automation Servo

Hotel Pack Cream Automation Servo Manufacturers, Suppliers, and Exporters in India, South Africa, Paarl, Johannesburg, Benin, Zambia, Central Africa, Uganda, Mozambique, Kenya, Nairobi, Nigeria, and Lagos. is one of the best solutions for cream biscuit packaging of different types of biscuits in pile pack. Automatic with Servo operated mechanisms make it very effective and reduce the man power to a certain limit. The PLC controlled with touch screen panel make it user friendly and is easy to set the parameters. The speed can be varied up to 200 packets per minute according to product sizes for single pile biscuit

Enquire Now

Call Anytime
+91 88795 88231

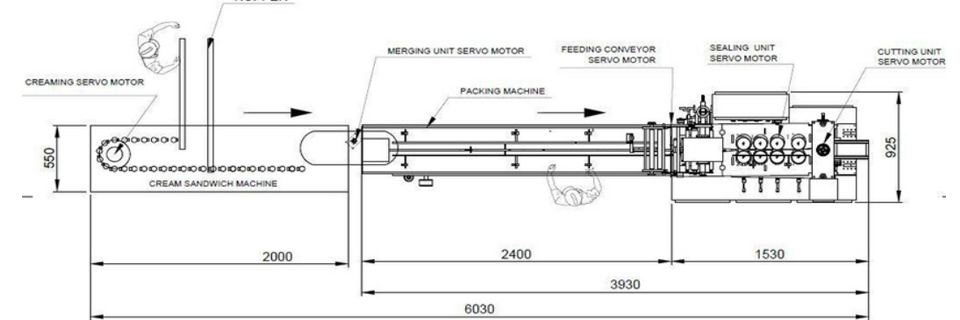

Dimensional Drawings :

Machine Specifications and technical parameters :

Cutter/ Jaw Servo Motor	1 phase	0.75 KW, 3000 rpm, 220 V, 50 Hz
Paper Drive Servo Motor	1 phase	0.4 KW, 3000 rpm, 220 V, 50 Hz
Merging Unit Servo Motor	1 phase	0.4 KW, 3000 rpm, 220 V, 50 Hz
Feeding Conveyor Servo Motor	1 phase	0.4 KW, 3000 rpm, 220 V, 50 Hz
Cream Sandwich Servo Motor	3 phase	1.5 KW, 2000 rpm, 220 V (from transformer), 50 Hz
Jaw Heater	50 V, 275 W – 8 No
Dish Heater	50 V, 400 W – 4 No
Transformer	Primary - 1 Phase, 230 V , Secondary – 50 V, 80 A

Technical Parameters & Specifications :

Product Size Range	50 mm (W) x 28 mm (Ht) To 100 mm (W) x 50 mm (Ht)
Wrapper Size Range	110 to 290 mm Cutoff Length & 150 to 300 mm wrapper width
Type of Product	Should be stiff or hard and round or rectangle or square in shape.
Speed	40 to 200 (PPM) (depending upon the size of the biscuits and no. of piles).
Feeding	Auto feeding to machine. (manually feeding in chutes)
Weight	1100 kg (Approx.)
Wrapping Material	BOPP laminated. LD Polvester. Heat Sealable Laminates Containing Aluminum Foil. Maximum 12" Roll diameter.

Special Features :

PLC controlled with touch screen & password protection for the machine settings.
Auto set of the different Cutoff Lengths, RPM, Jaw Dwell by putting the desired value in touch screen.
No of piles can be changed from the HMI screen by selecting the desired option.
Equipped with NO PRODUCT NO WRAPPER function to avoid the wastage of paper as well as product.
Malfunction display through self-alarm with message & Pouch Wastage is reduce to a very big instant. Machine will automatically
calculate the maximum & minimum Rpm Limit for specified Pouch length. Quick changeover for different varieties of products with adjustable forming box. and the no of piles can be changed from the HMI screen
Highly sensitive photoelectric scanner for exact pouch length. Online correction can be done for maintaining the I-mark position in running condition and Auto/Inch selection through touch screen.
All inputs & outputs for sensors, heaters and encoders are displayed in engineering setting,
Powder coated structure with SS 304 or Powder Coated safety guards and electric control panel. Printer or Coading unit installation and trial is in customer's scope.
End cutter and sealer have provision for single jaw system.
Overall durable, practical, low maintenance and affordable. Suitable for working long hours without breakdown and without need of constant supervision.
