Sketch Pen Packing Manufacturers, Suppliers, and Exporters in India, South Africa, Paarl, Johannesburg, Benin, Zambia, Central Africa, Uganda, Mozambique, Kenya, Nairobi, Nigeria, and Lagos. This machine is suitable for packaging of single or multiple products in one pouch, products such as Sketch Pens, Ball Pens, Pencils, Marker Pen, Correction Pen, etc. The PLC controlled with touch screen panel make it user friendly and is easy to set parameters. Hopper is specially designed to select the products automatically. Hopper can be customized as per products.
| Power Supply | 3 Phase, 4.7 KW | 440 V With neutral | |
|---|---|---|---|
| Main Paper Moto | 3 phase/1 phase 6 Lead | 1 HP - 2 no, 1440 rpm, 440 V, 50 Hz | |
| Stepper Motor | 1 phase 6 Lead | 50 W - 4 no, 100 rpm, 10.5 V, 50 Hz | |
| Main & Paper VFD | 230 V, 2 HP each | Input | Output |
| Single Phase | 3 Phase | ||
| Jaw Heater | 50 V, 275 W - 4 No (Check the actual wattage) | ||
| Dish Heater | 50 V, 400 W - 4 No (Check the actual wattage) | ||
| Transformer | Primary - 1 Phase, 230 V, Secondary - 50 V, 80 A | ||
| Wrapper Size Range | 75 to 180 mm Cutoff Length & 90 to 250 mm wrapper width |
|---|---|
| Type of Product | Should be stiff or hard and round or rectangle or square in shape |
| Speed | 40 to 100 PPM (depend upon the size of the product). |
| Feeding | Hopper or Manual Feeding |
| Control | PLC controlled with double motor |

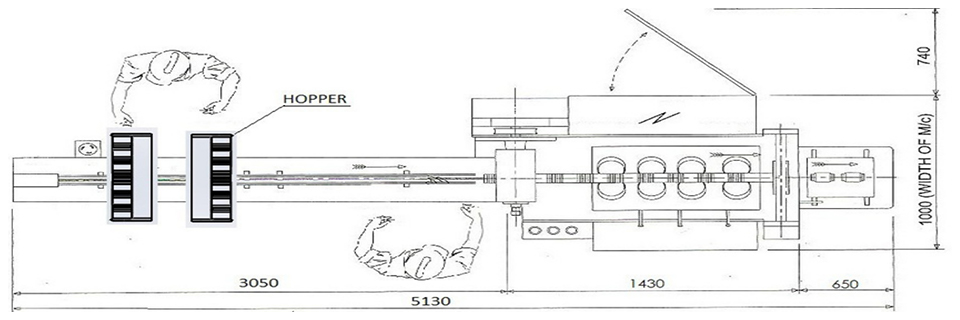

| Machine Dimension | 5130 (L) x 1000 (W) x 1675 (H) |
| Weight | 700 kg (Approx.) |
| Wrapping Material | BOPP laminated, LD Polyester, Heat Sealable Laminates Containing Aluminum Foil. Maximum 12 inches Roll diameter. |
